Summary
If the installer is failing with an error 1603, then this typically indicates a problem in configuring IIS. This will occur if the installer does not have permissions to modify web.config, or if the Default Web Site in IIS is not bound to port 80.Symptoms
The App Portal 2017 installation may fail with MSI error 1603. The following may be seen in the MSI log created by the installer:CustomAction ISIISInstall returned actual error code 1603 (note this may not be 100% accurate if translation happened inside sandbox) Action ended 14:12:41: InstallFinalize. Return value 3.
Cause
This may occur if the installer does not have permissions to write to the file C:\inetpub\wwwroot\web.config. The issue will also occur if the Default Web Site in IIS is not bound to port 80.Resolution

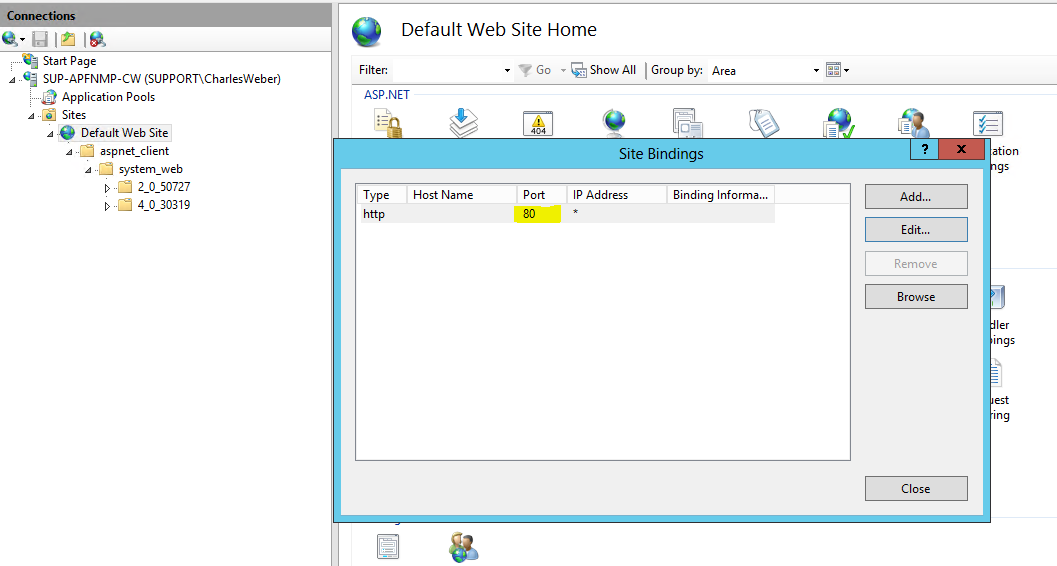

Prior to installing, be sure that the user account performing the installation has the appropriate permissions to modify web.config. Also, be sure that there is a binding to port 80 on the default web site.. The following screen capture illustrates:Additional Information
The MSI log for the installer will be created in the %TEMP% directory. The file name will reflect the version of App Portal being installed. For example, the log file will be named App_Portal_2017_R1.log when installing App Portal 2017.Was this helpful?
