1. Open a Command Prompt with administrator privileges.
2. Create a UDL test file by running the following command:


   > COPY NUL %TEMP%\testoledb.udl

3. C:\Windows\System32\rundll32.exe "C:\Program Files\Common Files\System\Ole DB\oledb32.dll",OpenDSLFile %TEMP%\testoledb.udl

For 32-bit Beacon (versions 25.1.0 and below)

On 64-bit Windows Operating System:

C:\Windows\SysWOW64\rundll32.exe "C:\Program Files (x86)\Common Files\System\Ole DB\oledb32.dll",OpenDSLFile %TEMP%\testoledb.udl

On 32-bit Windows Operating System:

C:\Windows\System32\rundll32.exe “C:\Program Files\Common Files\System\Ole DB\oledb32.dll”,OpenDSLFile %TEMP%\testoledb.udl

For 64-bit Beacon versions 25.2.0 and above

On 64-bit Windows Operating System:

C:\Windows\System32\rundll32.exe "C:\Program Files\Common Files\System\Ole DB\oledb32.dll",OpenDSLFile %TEMP%\testoledb.udl

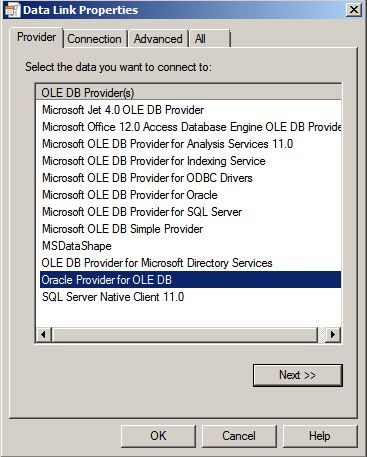

4. Click Next.

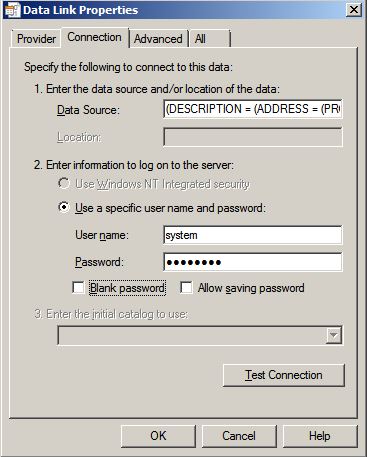

5. Fill in the Data Source, User name, and Password fields.


ORCL11 =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = <host_name>)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = orcl11)
    )
  )

(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=<host_name>)(PORT=1521))(CONNECT_DATA=(SERVER=DEDICATED)(SERVICE_NAME=orcl11)))
