Summary

This article explains how to set compatibility flags for your application in your installer by writing registry entries

Synopsis

In certain circumstances it may be necessary to set compatibility flags for the application being installed. When compatibility flags are set for an executable, this information is stored in the registry. This means that you can write the necessary registry entries at install time to set the compatibility flags.

If we look at an example executable isdev.exe which exists at C:\Program Files (x86)\InstallShield\2014\System and set the compatibility mode to Windows Vista and check Run this program as an administrator, as shown below.

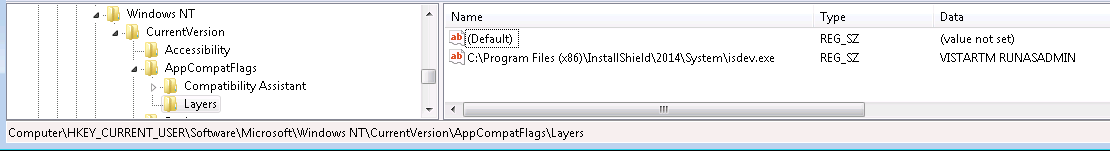

Then you will see the following registry entry is created:

(Click on image to view at a larger size.)

As you can see a new string has been created at Software\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\Layers. The name of the string is set to the full path to the executable and the string data is set to contain various values, separated with a space, based on the flags that are set for that executable.

So you can create a new registry string in your InstallShield project to set compatibility flags. Make sure the string name is the full path to your executable including the executable name. Then set the string data depending on which flags you would like to set. There is a list of some of the possible flag settings below.

(Click on image to view at a larger size.)

To apply the compatibility flags only for the current user, you can create the string at:

'HKEY_CURRENT_USER\Software\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\Layers'

If you would like the flags to be set for all users, you can create the string at:

'HKEY_LOCAL_MACHINE\Software\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\Layers'

Bear in mind that when setting compatibility flags using HKLM for all users, the settings cannot be changed by a user that does not have administrative rights on that machine. Also when writing to HKLM\Software, Windows Installer will automatically redirect registry information from a 32 bit MSI installer to HKLM\Software\Wow6432Node\. To write to the correct all users directory on a 64 bit machine you will need to use a 64 bit MSI and set the registry component to 64 bit also.

Additional Information

Some of the possible registry values are listed below. You can find out others by setting the compatibility options on your machine for an executable and then looking at the registry location to see what values are written.

• WIN95 Windows 95
• WIN98 Windows 98
• WIN4SP5 Windows NT 4.0 SP5
• WIN2000 Windows 2000
• WINXPSP2 Windows XP SP2
• WINXPSP3 Windows XP SP3
• VISTARTM Vista
• VISTASP1 Vista SP1
• VISTASP2 Vista SP2
• WIN7RTM Windows 7
• WINSRV03SP1 Windows Server 2003 SP1
• WINSRV08SP1 Windows Server 2008 SP1
• DISABLETHEMES Disable Visual Themes
• 640X480 Run in 640 x 480 screen resolution
• HIGHDPIAWARE Disable display scaling on high DPI settings
• 256COLOR Run in 256 colors
• DISABLEDWM Disable Desktop Composition
• RUNASADMIN Run program as an administrator
