Summary

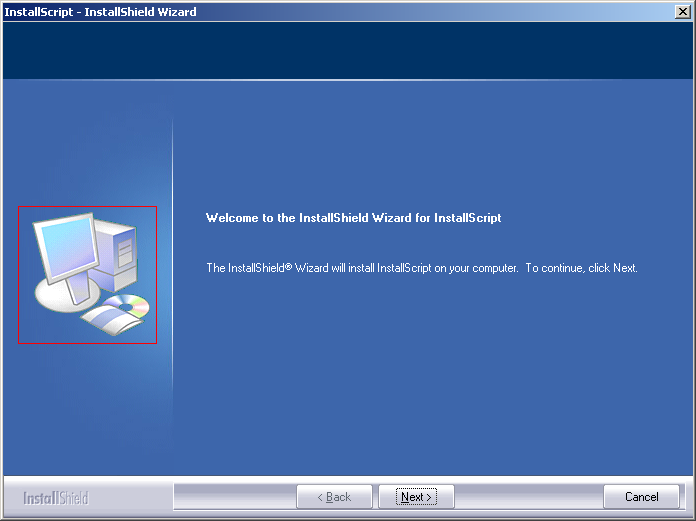

This knowledge base article explains how to replace the computer image in a skinned installation dialog, as seen below:Synopsis
This knowledge base article explains how to replace the computer image in a skinned installation dialog, as seen below:
Discussion
To replace the computer image in a skinned installation, call the InstallScript function DialogSetInfo() with the DLG_INFO_ALTIMAGE parameter. Make sure you call this function before your first dialog is displayed (so the OnBegin() event would be a safe choice to call this function).
The computer image displayed by setup.exe during setup initialization will not be affected by the InstallScript function DialogSetInfo because the InstallScript engine is not running at this time. To ensure a better user interface experience for your users, rebuild your installation media and make sure you set the Small initialization dialog property to Yes.
Additional Information
For more information, see the following Help Library topics: DialogSetInfo and DialogSetInfo Example
