Overview of Transfer Split functionality in LLM can found in this article .

1)Entitle the Source Account (View Account -> Entitle -> Entitle Account)

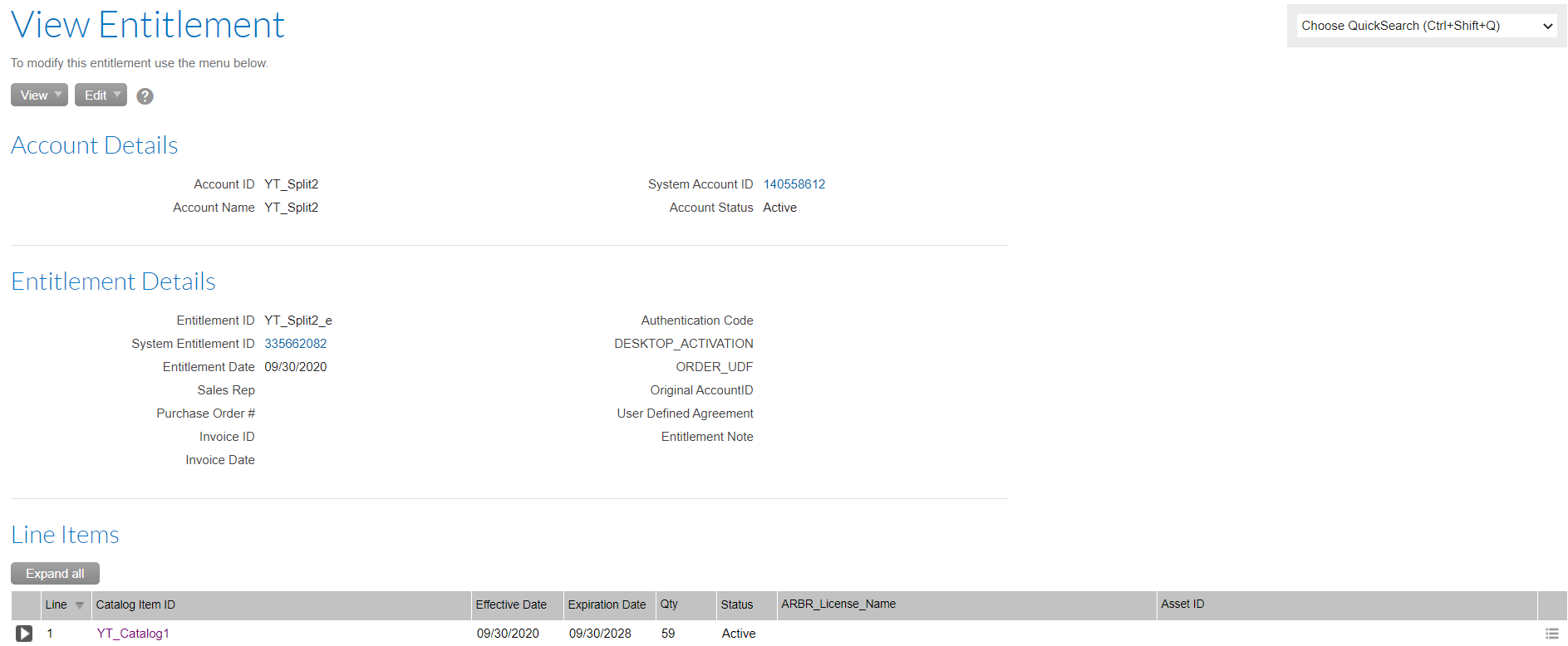

2)Create an order line (View Entitlement -> Edit Entitlement -> Add Line items with all details)
   - Certificate from the source account will keep its activation code and will remain ACTIVE

     3) Create a Target Account

     4) Make sure to check no mappings, splits are active on the source account

     5)Check for the Activation Code under Allocations ( View Entitlement -> View Allocations).

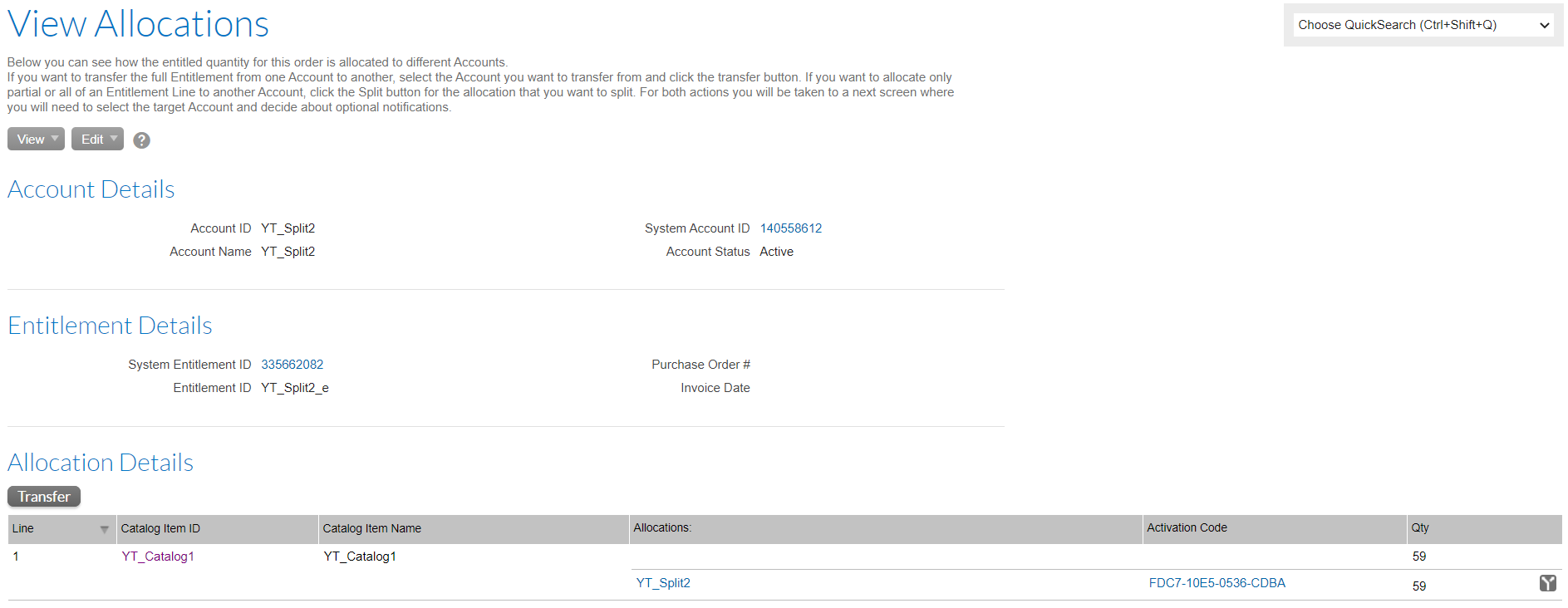

         Under Allocation Details before Split.

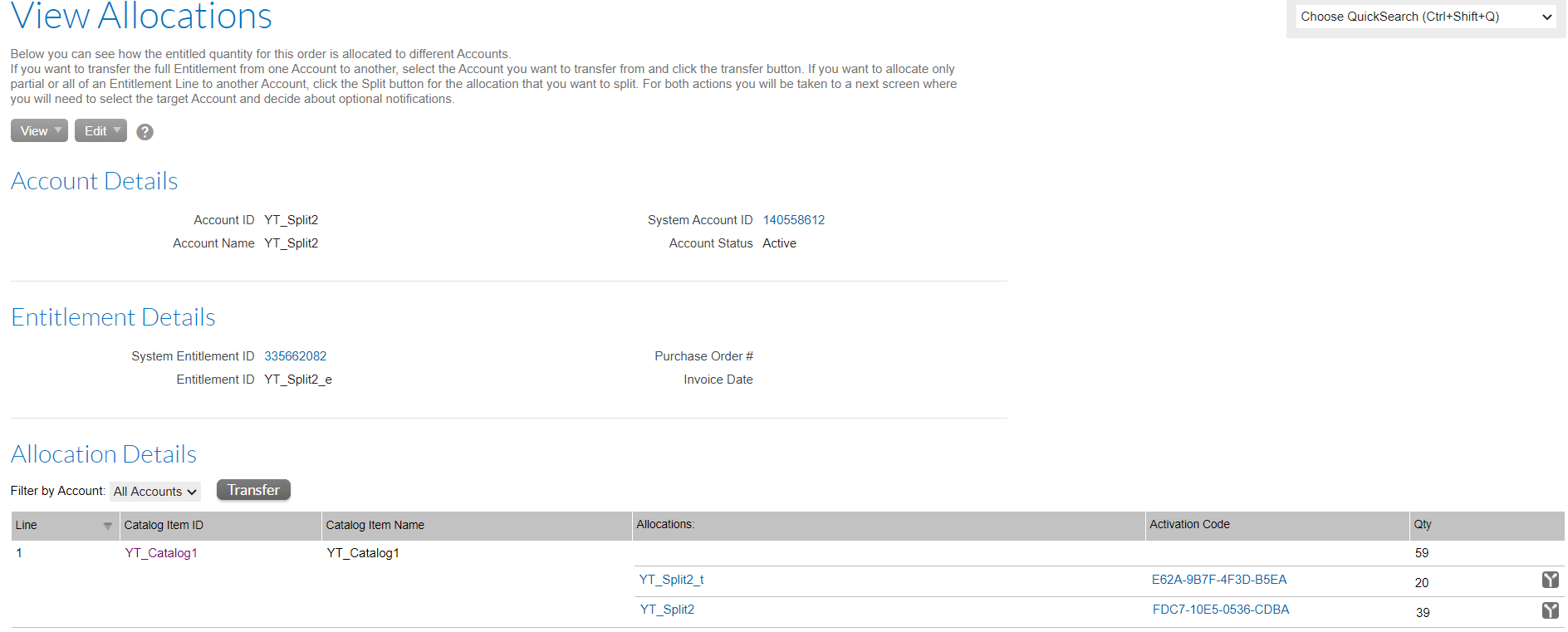

6)Before the Complete Split:

• Split some(Quantity 20) from the source account to the target account(YT_Split2_t).
• We see that the quantity 20 is under Target Account with the new Activation Code.
• The activation code of the original owner(YT_Split2) remains unchanged.

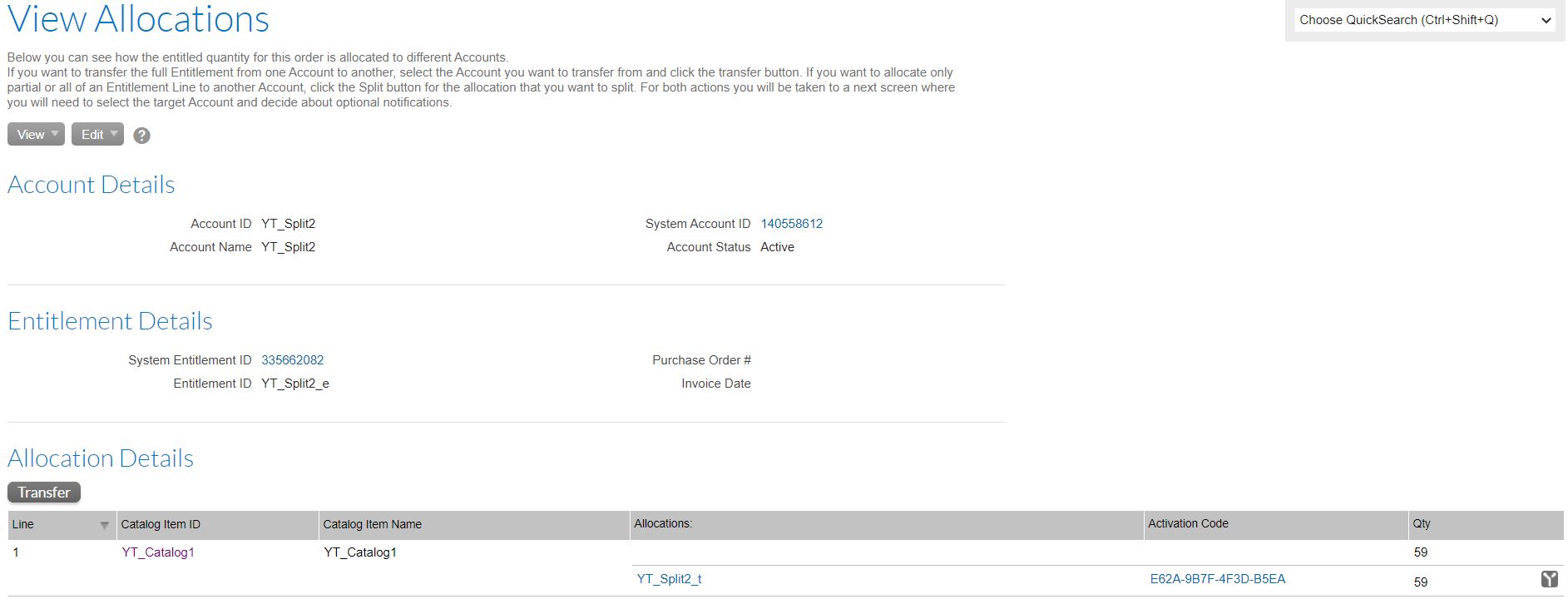

7) After splitting the remaining quantity, we see that the whole quantity is under Target Account with the Activation Code retained.

• The available_qty from the source certificate will now be 0
• The quantity from the source certificate will now be on the target certificate

NOTE : Do this Action in EP if you want an email to be sent to the customer.
