Summary

The SVM VA server will generate a self-signed SSL certificate when you choose to use SSL.
These instructions will explain how to swap it for your certificate and key pair.

Synopsis

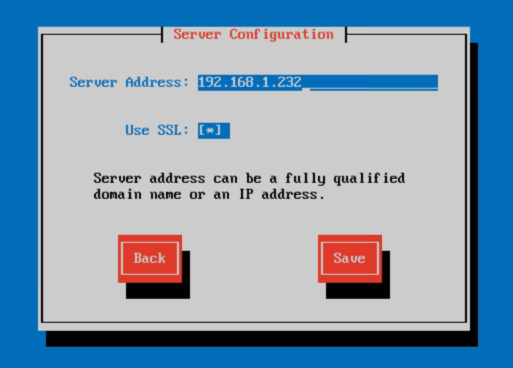

Once you've run through the SVM Virtual Appliance (VA) setup wizard and have selected to use SSL you'll find that the server is set up with a self-signed SSL certificate. In some environments that isn't an ideal solution as the act of propagating the public key from this certificate to all endpoints can be daunting.  Below you'll find step by step instructions on how to replace the generated certificate with your own.

1. Obtain and transfer your public and private keys to your SVM VA. Once you have access to the file(s) this can be easily transferred to your server with a tool like WinSCP.

2. If your certificate is packaged together in a PFX file, you can do the following to prepare your public and private key files.

Extract the private key:

openssl pkcs12 -in cert_name.pfx -nocerts -out csi.key

Remove the password from your key, so httpd will start without prompting:

mv csi.key csi.key.secure

openssl rsa -in csi.key.secure -out csi.key

Generate the public certificate:

openssl pkcs12 -in cert_name.pfx -clcerts -nokeys -out csi.crt

If you have a PEM file that has the two keys instead of a pfx you'll want to change the pkcs12 to x509 to match the format of the certificate. If you have another certificate format you'll need to adjust accordingly. Please refer to the openssl manual page for further details

SSLCertificateFile /etc/pki/tls/certs/csi.crt
SSLCertificateKeyFile /etc/pki/tls/private/csi.key

rm /etc/pki/tls/certs/csi.crt

rm /etc/pki/tls/private/csi.key

cp csi.crt /etc/pki/tls/certs/

cp csi.key /etc/pki/tls/private/

service httpd restart
