This article provides practical guidance on using REST APIs with FlexNet Embedded license servers—Local License Server (LLS) and Cloud License Server (CLS)—including how to enable security on LLS, configure a producer user in CLS for tenant‑specific operations, and invoke the most commonly used endpoints.
- LLS is an on‑premises license server that manages entitlements locally (including offline scenarios).
- CLS is a cloud‑hosted, tenant‑specific license server managed by Revenera for centralized, real‑time license enforcement.
This article walks you through end‑to‑end setup and usage of REST APIs for FlexNet Embedded license servers.

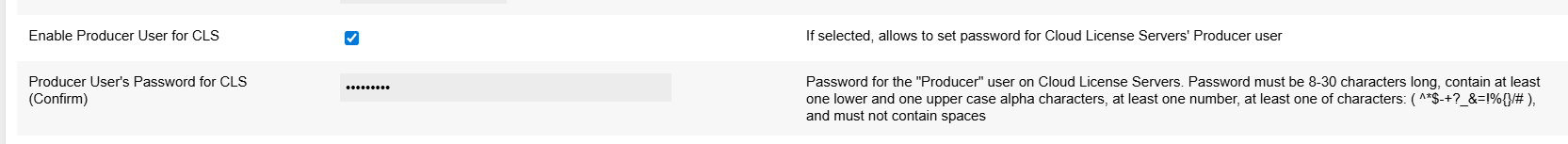

#1: Enable a Producer User in Cloud License Server (CLS)
To enable a producer user for CLS:
- From the FlexNet Operations Producer Portal, navigate to: System > Configure > FlexNet Operations > Embedded Device Settings.
- Select Enable Producer User for CLS.
- Set the Producer User’s Password for CLS.
- Once enabled and the password is set, you can use this producer user to authorize API calls on the CLS instance.
#2: Enable a Producer or Admin User in Local License Server (LLS)
To secure LLS and allow authorized REST API calls:
- First, enable security by creating or editing the
properties.txtfile and adding:security.enabled=true - Next, configure passwords for the admin and/or producer user during setup.
- On Windows, run:
flexnetlsconfig.bat [-prop prop_file] [-o output_file] -id -id_file [-admin-password <password>] [-producer-password <password>] - On Linux, use:
sh flexnetlsconfig.sh -help [-prop prop_file] [-o output_file] -id -id_file [-admin-password <password>] [-producer-password <password>]
- On Windows, run:
- You can set either or both passwords. If no password is set, LLS will allow some REST API calls without authorization, which is a security risk.
NOTE: Always set strong passwords and enforce HTTPS.
- After configuration, proceed with the usual installation and start the LLS.
#3: Use the REST APIs
To use the REST APIs:
- Begin by authorizing to obtain a Bearer token via
POST /authorize. Use the token in theAuthorizationheader for all secured calls. - CLS — Get a token :
API endpoint - "https://<siteID>.compliance.flexnetoperations.com/api/1.0/instances/<instanceId>/authorize" curl -s -X POST \ "https://<siteID>.compliance.flexnetoperations.com/api/1.0/instances/<instanceId>/authorize" \ -H "Content-Type: application/json" \ -d '{ "user": "<producerUser>", "password": "<password>" }' # → { "expires": "2025-08-12T20:07:16Z", "token": "eyJ..." }API endpoint - "https://<siteID>.compliance.flexnetoperations.com/api/1.0/instances/<instanceId>/authorize" curl -s -X POST \ "https://<siteID>.compliance.flexnetoperations.com/api/1.0/instances/<instanceId>/authorize" \ -H "Content-Type: application/json" \ -d '{ "user": "<producerUser>", "password": "<password>" }' # → { "expires": "2025-08-12T20:07:16Z", "token": "eyJ..." } - LLS — Get a token:
API endpoint - "http://localhost:7070/api/1.0/instances/~/authorize " curl -s -X POST \ "http://localhost:7070/api/1.0/instances/~/authorize " \ -H "Content-Type: application/json" \ -d '{ "user": "", "password": "" }' - Here in the Authorization API, we need to send the producer user and password in the API request body. You can use the admin/producer user for LLS and the producer user for a CLS.
- Once security is enabled, obtain an authorization token by calling
POST /authorizewith your credentials. Include the returned token in theAuthorization: Bearer <token>header for all secured endpoints. Common operations include:- /features – View available features and entitlements.
- /clients – Manage connected clients and sessions.
- /config – Retrieve or update server configuration details.
- For CMAPI, enable JSON Security by uploading a public key and signing JWTs for client requests. Use the server-hosted Swagger UI or Postman collections for testing and automation.
Further details on the REST APIs for LLS can be found in the Swagger UI at http://localhost:7070/swagger-ui/index.html
NOTE: Port 7070 is the default for LLS and should be changed in the URL if your configuration uses a different port.
