This article provides a structured approach to troubleshooting connection failures to Microsoft 365 APIs when using the Flexera One ITAM/FlexNet Manager Suite Microsoft 365 inventory adapter.
Error symptoms
Below is an example of error details that may appear in the logs when a beacon fails to connect to Microsoft 365 APIs. The troubleshooting steps in this article can help resolve these issues.
2024-12-14 03:27:55,148 [INFO ] Reading 'Computer' data from 'M365_Connection' (ver 1.0) data source2024-12-14 03:27:55,148 [INFO ] Get Users from Office 365 (Transfer data from source 'M365_Connection' to FNMP)2024-12-14 03:27:56,938 [ERROR] System.Net.WebException: The remote server returned an error: (400) Bad Request. at Microsoft.PowerShell.Commands.WebRequestPSCmdlet.GetResponse(WebRequest request) at Microsoft.PowerShell.Commands.WebRequestPSCmdlet.ProcessRecord()2024-12-14 03:27:56,938 [ERROR] Microsoft.PowerShell.Commands.WriteErrorException: Error occurred trying to get the access token: Get-TokenSetInternal failed2024-12-14 03:27:57,019 [INFO ] #ObjectModel_User_GetUsersfromOffice3652024-12-14 03:27:58,039 [INFO ] Failed to execute Reader 'Get Users from Office 365' from file C:\ProgramData\Flexera Software\Compliance\ImportProcedures\Inventory\Reader\microsoft 365\User.xml, at step line 1Error: The remote server returned an error: (400) Bad Request.
Troubleshooting steps
To diagnose and resolve connection failures, follow these steps using PowerShell to attempt a connection to the Microsoft 365 API, optionally through a web proxy. The statements below perform the same operations as the Microsoft 365 inventory adapter when it makes a connection to the API.
As you work through these steps:
- Execute these commands in a Windows PowerShell 5.x window (not PowerShell 7.x).
- Check for any errors in the output. Use the error details to guide further investigation. This may involve searching online for solutions or consulting with personnel who support Microsoft 365 or the network environment.

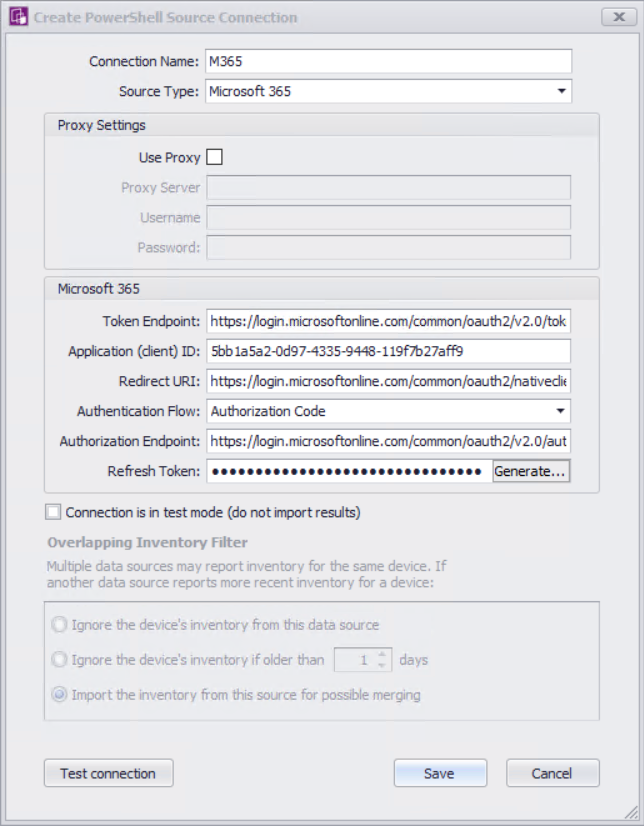

- It may be helpful to refer to details configured in the Microsoft 365 connection in the beacon UI. The relevant UI dialog for configuring the connection details looks like this:
Step 1: Retrieve connection details
Option 1: Retrieve details from the beacon UI
If your beacon has a Microsoft 365 inventory connection configured, use the following PowerShell commands to retrieve the connection details. This avoids re-entering the details or if you're unsure of them.
Replace "M365" in the first line of the script with your actual connection name.
NOTE: Use option two instead if you want to manually enter details in response to PowerShell prompts.
$connectionName = "M365"
if ($PSVersionTable.PSEdition -ne "Desktop") {
Write-Error "This script must be run in a Windows PowerShell 5.x window (not a PowerShell 7.x window). Please open a Windows PowerShell window and re-run." -ErrorAction Stop
}
$beaconInstallPath = Get-ItemPropertyValue -Path "HKLM:\SOFTWARE\WOW6432Node\ManageSoft Corp\ManageSoft" -Name ETDPInstallDir
if (!$beaconInstallPath) {
Write-Error "Could not find beacon installation path. Are you running this on a beacon?" -ErrorAction Stop
}
Add-Type -Path "$beaconInstallPath\DotNet\bin\Flexera.Beacon.Common.dll"
$connection = ([Flexera.Beacon.Common.BeaconDataLayerFactory]::Create()).LoadConfigurations().GetConnectionsByName($connectionName)
if (!$connection) {
Write-Error "No connection with name '$connectionName' found" -ErrorAction Stop
}
# Build hash table of parameters for lookup
$params = @{}; $connection.RemoteConnectionParameters | %{ $params[$_.Name] = $_.Value }
Option 2: Manually enter connection details
You can manually enter the connection parameter details instead of retrieving them from the beacon UI. Take this approach if you are not working on a beacon with a Microsoft 365 connection already configured or if you want to use different parameter values from what is configured for the beacon’s connection.
$params = @{}
$params.proxyServer = Read-Host "Enter web proxy URL (example: http://my-proxy:8080), or leave blank if no proxy is needed"
if ($params.proxyServer) {
$params.proxyUsername = Read-Host "Enter username for web proxy authentication, or leave blank if no authentication is required"
if ($params.proxyUsername) {
$params.proxyPassword = (Get-Credential $params.proxyUsername -Message "Enter password for web proxy authentication").GetNetworkCredential().Password
}
}
$params.TokenEndpoint = Read-Host "Enter Token Endpoint (example: https://login.microsoftonline.com/common/oauth2/v2.0/token)"
$params.ClientID = Read-Host "Enter Application (client) ID (example: 5bb1a5a2-0d97-4335-9448-119f7b27aff9)"
$useAuthCode = (Read-Host "Use Authorization Code authentication flow? (Y or N)").ToUpper()
if ($useAuthCode[0] -eq "Y") {
$params.AuthType = "Authorization Code"
$params.RedirectUrl = Read-Host "Enter Redirect URL (example: https://login.microsoftonline.com/common/oauth2/nativeclient)"
$params.AuthorizationEndpoint = Read-Host "Enter Authorization Endpoint (example: https://login.microsoftonline.com/common/oauth2/v2.0/authorize)"
$params.RefreshToken = Read-Host "Enter Refresh Token"
} else {
$params.AuthType = "Client Credentials"
$params.ClientSecret = Read-Host "Enter Client Secret"
}
Step 2: Configure web proxy (if required)
If you need to use a web proxy to connect to the Microsoft 365 APIs, configure the web proxy in your current PowerShell session with these commands:
if ($params.proxyServer) {
[System.Net.WebRequest]::DefaultWebProxy = New-Object System.Net.WebProxy($params.proxyServer)
if ($params.proxyUsername) {
$credCache = New-Object System.Net.CredentialCache
$cred = New-Object System.Net.NetworkCredential($params.proxyUsername, $params.proxyPassword)
$credCache.Add($params.proxyServer, "Basic", $cred)
[System.Net.WebRequest]::DefaultWebProxy.Credentials = $credCache
}
}
Step 3: Obtain Microsoft 365 access token and user data
Execute the following to initiate a connection to the Microsoft 395 API and obtain an access token:
Write-Output "Connecting to Microsoft 365 API using the following parameters:"
$params
if ($params.AuthType -eq "Authorization Code") {
$tokenArgs = @{
client_id = $params.ClientID
redirect_uri = $params.RedirectUrl
refresh_token = $params.RefreshToken
grant_type = "refresh_token"
}
} else {
$tokenArgs = @{
client_id = $params.ClientID
scope = "https://graph.microsoft.com/.default"
client_secret = $params.ClientSecret
grant_type = "client_credentials"
}
}
[System.Net.ServicePointManager]::SecurityProtocol = [System.Net.SecurityProtocolType]::Tls12
$response = Invoke-RestMethod -Uri $params.TokenEndpoint -Method POST -ContentType "application/x-www-form-urlencoded" -Body $tokenArgs
if (-not $response.access_token) {
Write-Error "No access token returned" -ErrorAction Stop
}
Write-Host "Access token successfully obtained"
$headers = @{
Authorization = "Bearer $($response.access_token)"
ContentType = "application/json"
ConsistencyLevel = "eventual"
}
Step 4: Call additional API endpoints to query data
After obtaining an access token, calls can be made to Microsoft 365 APIs endpoints to query data as appropriate for your troubleshooting need.
Here are some examples.
To query some user data:
$result = Invoke-RestMethod -Method GET -Uri 'https://graph.microsoft.com/v1.0/Users?$select=id,givenName,surname,userPrincipalName,assignedLicenses&$top=2&$count=true' -Headers $headers
Write-Output "Returned result with $($result."@odata.count") users"
Write-Output "First users in result set:"
$result.value
To query subscribed SKUs:
$result = Invoke-RestMethod -Method GET -Uri 'https://graph.microsoft.com/v1.0/subscribedSkus' -Headers $headers
Write-Output "Returned result with $($result.value.Count) subscribed SKUs"
Write-Output "Subscribed SKUs:"
$result.value
See Microsoft 365 Adapter for more details about the Microsoft 365 adapter.
