Discussion

To set this up with your install you will need to add some registry data into your InstallShield project. The installer will need to write to the following registry key:

HKEY_LOCAL_MACHINE\Software\Microsoft\Active Setup\Installed Components\[ProductCode]

With the following value:

"@"=[ProductName]
"StubPath"="msiexec.exe /fou [ProductCode] /qb"
"Version"="1,0,0"

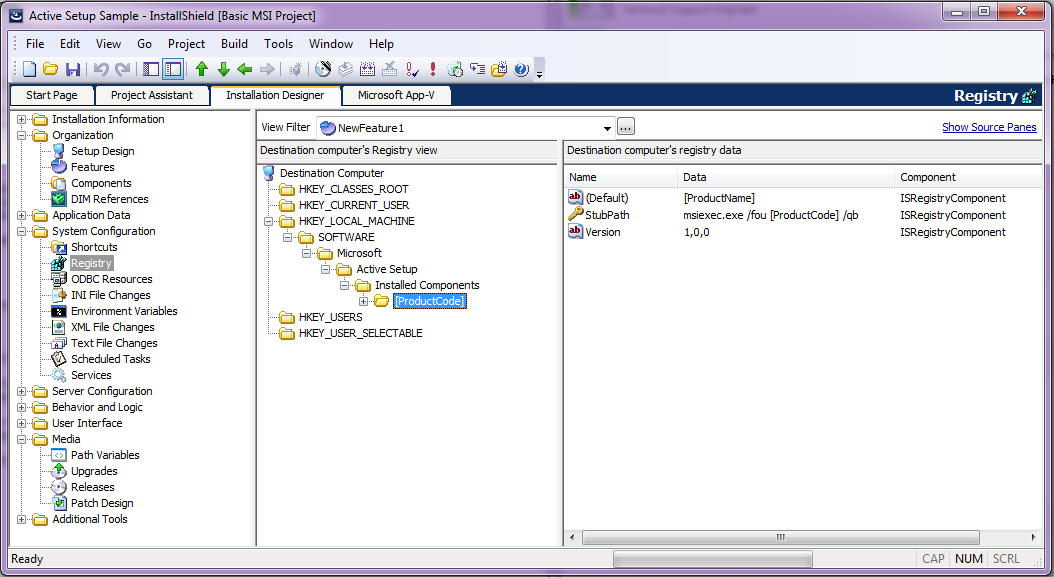

Once these are added in InstallShield it should look something like:

Once this is setup when the end user logs into the computer Active Setup will compare the registry data in HKLM with the corresponding key in HKCU, and if he version in HKCU is less than the one in HKLM or the HKCU key does not exist, Windows will copy some of the values from the HKLM key to the HKCU key and then execute the command in the "StubPath" value.

At some point the original user that did the initial install will need to log off and log back onto the computer. In this case the Active Setup may run a repair under this user even though it is not necessary. To get around this you will want to also add a registry key and value under the HKCU hive. This would be in the following key:

HKEY_CURRENT_USER\Software\Microsoft\Active Setup\Installed Components\[ProductCode]

With the following value:

"Version"="1,0,0"

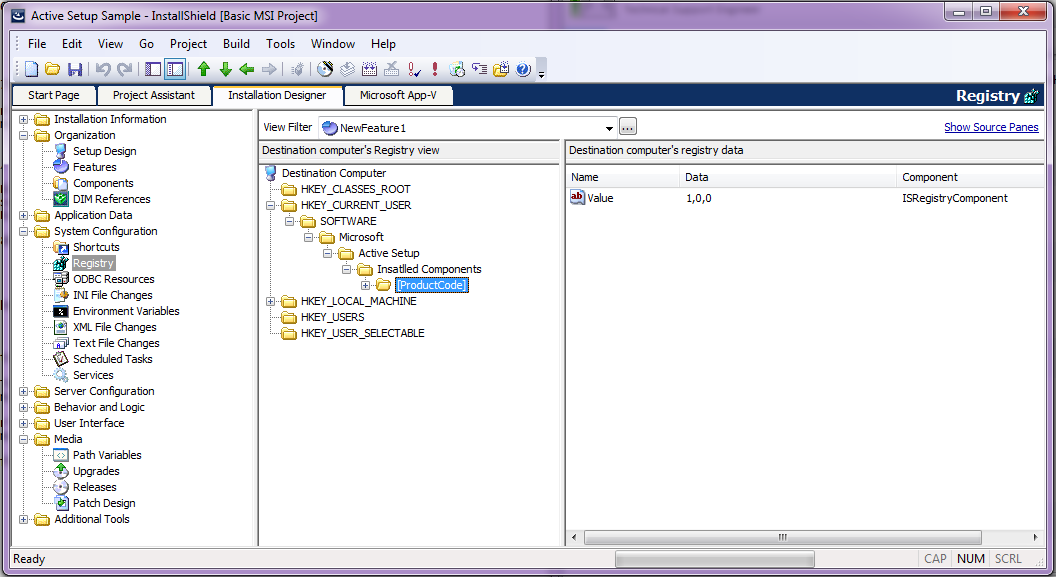

Once this is added in InstallShield it should look something like:

Once this is done the user that did the first time install should be able to log off and back on without triggering the repair. Any other user should see the Windows Installer repair dialog once they login, and Windows has determined that the Active Setup should be run.

The last thing to note will be to ensure that the Windows Installer will be able to locate the source media to complete the repair. If Windows Installer needs the source media, but cannot find it, the end user will be prompted to browse to the source media. To get around this you can place the source media where you would like, for example on a network share, and then specify this location in the SOURCELIST property in your installer. If you do not have network access in your environment you can copy the source to a common accessible location on the machine, for example a location like:

[CommonAppDataFolder]\[Manufacturer]\[ProductName]

Which should resolve to something like:

C:\ProgramData\MyCompany\Active Setup Sample
