Summary
This article describes how-to include controls in a Suite Project to create BillboardsSynopsis
InstallShield contains a number of built-in controls and text styles that define text attributes such as color, size, and font name for the text on the Wizard UI. InstallShield also contains several built-in brush styles. A brush style specifies a solid color, a gradient, or an image for various elements of the wizard interface, such as the background of wizard pages and controls. You can edit any of the settings for these built-in styles, or define your own styles, through the Wizard Interface view in your Suite project.In this article the use of a Billboard Control on a Suite Project panel is described.
Discussion
The steps involved to include Billboard Controls are:- File > New > Suite project.
- Add a feature and package.
- Navigate to User Interface > Wizard Interface and open panel InstallationWelcome.
- Delete all of the existing controls (Right Click control names and select 'Delete').

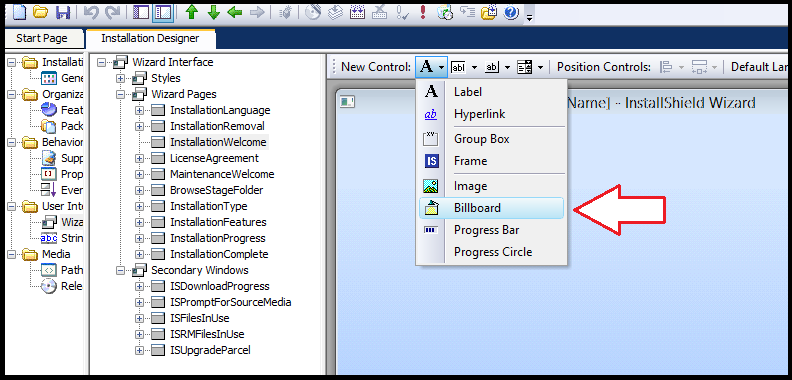

- Select dropdown for the letter 'A' next to 'New Control'.
- Add a Billboard control - this is expected to be the only control on the panel.
- Expand 'Style' and select SS_REALSIZECONTROL = True.
- Position 0,0,411,225.
- Under 'Images' set 'Resource' for Image 1 to the first image you intend to cycle through.
- Transition - Expand.
- Duration - 1 (for one second).
Related Documents
InstallTalk Blog: Using Styles to Customize the User Interface of a Suite InstallationWas this helpful?
