License server status is not displayed in the UI

Title

Symptoms

The license manager is installed and distributing licenses. There is already an agent installed on the server reporting on other applications successfully. I added this new License server, with the correct data, but the FNMEA is not recognizing it.
Error in the agent debug log:

ERROR [Thread-35]: Problem writing the license server configuration.
 java.lang.Exception: The lmgrd specified does not exist
 at com.flexnet.agent.command.lmgrd.LicenseServerConfigure.insertConfigurationProperties(LicenseServerConfigure.java:71)
 at com.flexnet.agent.command.lmgrd.LicenseServerConfigure.executeCommand(LicenseServerConfigure.java:34)
 at com.flexnet.agent.command.lmgrd.BaseLicenseServerExecutor.executeCommandFromBridge(BaseLicenseServerExecutor.java:243)
 at com.flexnet.agent.command.lmgrd.LicenseServerBridge.run(LicenseServerBridge.java:63)

Cause

FNM UI the location of lmgrd and lmutil are specified within double quotes.

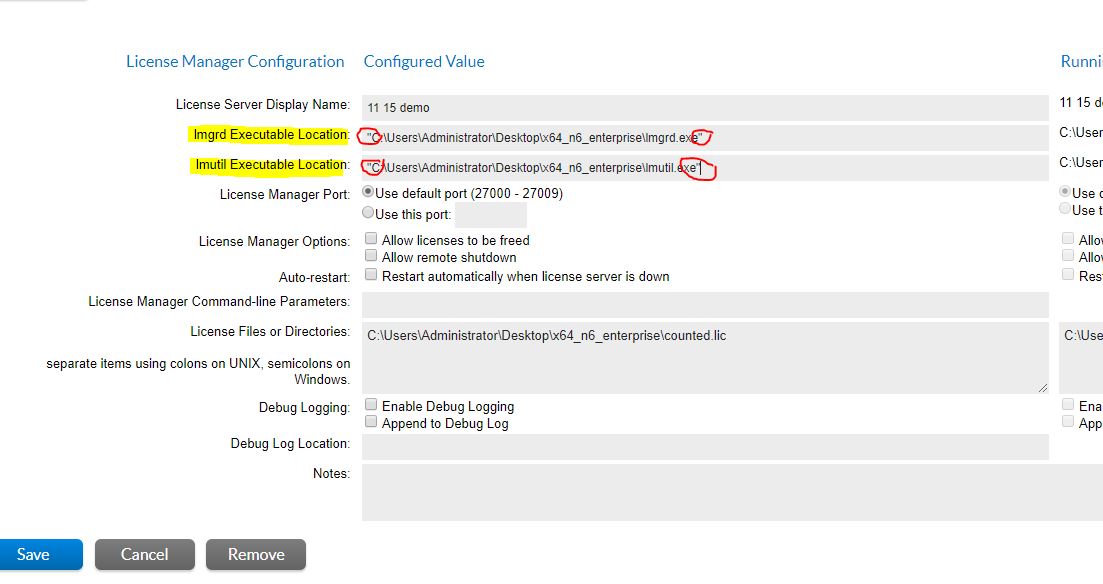

User-added image

Resolution

Edit the license server configuration and remove the double quotes
