Summary
When using the Slate Skin the print button is not centered correctlySymptoms

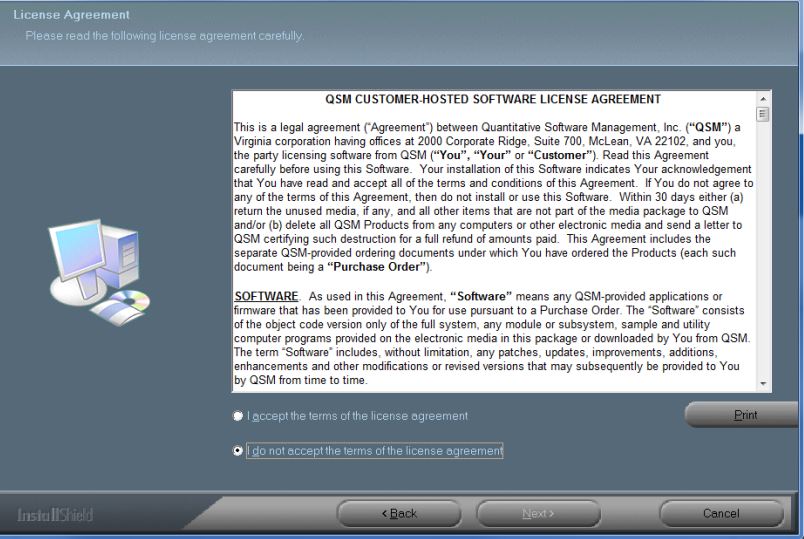

When using the Slate skin in an InstallScript MSI project the print button is not correct as shown belowCause
This is caused by issues with the Slate Skin and is a known bug. this issue will be fixed in a upcoming version of InstallShield. The work order for the fix is IOJ-1616665.Workaround
There are two options at this time to workaround this issue. One is to use the blue skin which is not broken. The other is to use the Skin customization kit to fix the Slate skin. To fix with the Skin customization kit you would first need to download the kit and install it. Then build your install uncompressed with the Skate skin. When uncompressed in the folder with all the built files are for your install is a file called setup.isn. With the skin customization kit you can extract the slate info files out of the setup.isn. Once extracted to fix the Slate skin made the following change to the slate skin.ini file...[SdLicense2Rtf]
...
BUTTON6POS=380,229
The article below talks about how to get the Skin Customization kit download
https://flexeracommunity.force.com/customer/articles/en_US/INFO/Skin-Customization-Kit
When you install the Skin customization kit there are instructions installed on the machine at <InstallShield folder> Skin Customization Kit\Help\SkinCustomizationKit.htm
Related KB Articles
https://flexeracommunity.force.com/customer/articles/en_US/INFO/Skin-Customization-KitWas this helpful?
