How to Change the Default Setup Type Selection on the InstallationType Wizard Page for Suite/Advanced UI Projects

Summary

This article will explain how to change the default selection on the InstallationType wizard page for Suite/Advanced UI projects.

Synopsis

This article will explain how to change the default selection on the InstallationType wizard page for Suite/Advanced UI projects:
BeforeAfter

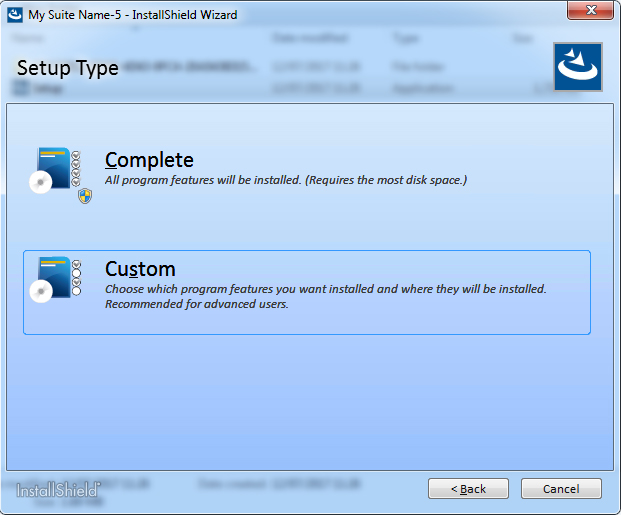

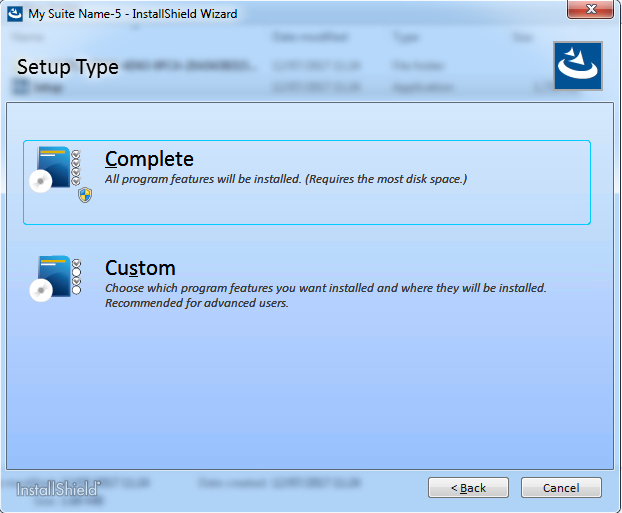

Screenshot of the wizard dialog before the change.Screenshot of the wizard dialog after the change.

Discussion

1. Create/Open an InstallShield Suite/Advanced UI project.

2. Click 'Wizard Interface' (found under 'User Interface').

Screenshot of step 2.

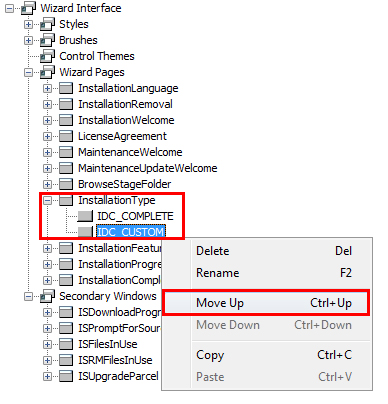

3. Expand the 'InstallationType' wizard page/dialog so that the button controls are displayed. After doing so, right-click the button you want to be selected by default during runtime and click 'Move Up' (do this until the button is at the top of the list).

Screenshot of step 3.

4. Build and test your Suite/Advanced UI installer.

Screenshot of the installation dialog after the change.
